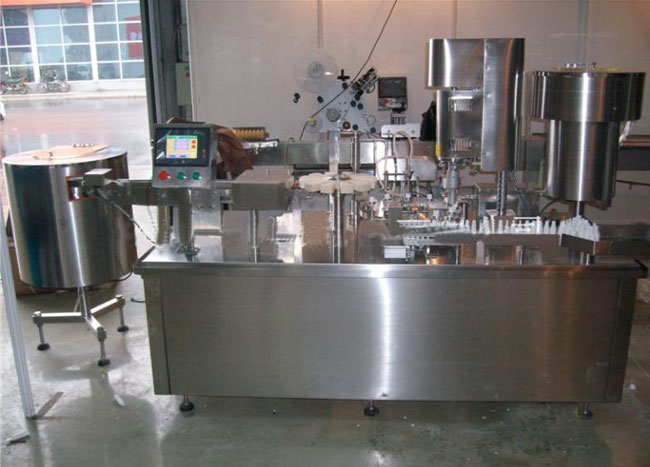

NQYZ10-20ml系列易折瓶口服液灌封机

用途与简介/Brief Introduction：

本机是取代口服液玻璃瓶的新产品，彻底解决了以往口服液玻璃瓶的不良效果。此种灌封机所用的塑料瓶，不但不需要洗瓶机、烘干机，更不需要消毒，可以直接灌封。该机全自动理瓶、进瓶、灌装，灌装量稳定，无漏滴，无瓶不灌装。上盖、封口率可达100%。此机技术先进，体积小、运行稳定、噪声低，操作维修、清洗方便等特点，完全符合GMP标准。

This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.

注：本型号有低速和高速两种产量供您选择。

Note: this model has two kinds of low speed and high-speed production for your choice.

特点 Characteristic

◆本机适用于各种易折瓶口服液计量灌装和封口。

The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.

◆所有电器元件均采用知名品牌。

All electrical components adopt famous brand

◆本机操作直观方便，无瓶不灌装，计量*。

It has intuitive and convenient operation, no bottle no filling, measuring precision.

◆易折塑料瓶灌封机的主要结构与原理

Easy to fold the main structure and principle of plastic bottle filling and sealing machine

◆NFGFY型口服液易折塑料瓶灌封机主要理瓶器、理盖器、主传动系统、同步带间隙送瓶装置、空瓶检漏装置、灌装机构、剔除装置、热熔封机构、气动机械手指夹瓶机构、伺服电机间隙上瓶机构与出瓶机构等组成。

Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.

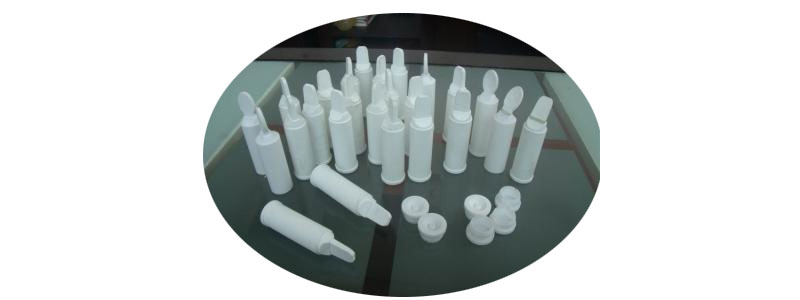

◆机器使用的口服液易折塑料瓶、盖是一定洁净区生产的，应有药包材许可证，所以瓶身与底盖经传递和"去外包"后可直接进入灌封间。通过理盖器、理瓶器的自动定向整理，剔除反向底盖及瓶身底口朝下的瓶，使定向后的包材喂料有规则地进入输送轨道中。

Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit.

 ◆定向后口服液易折塑料瓶在输送轨道中排

Directional oral liquid after folding plastic bottles in conveying rail out easily

技术参数technical parameters：
